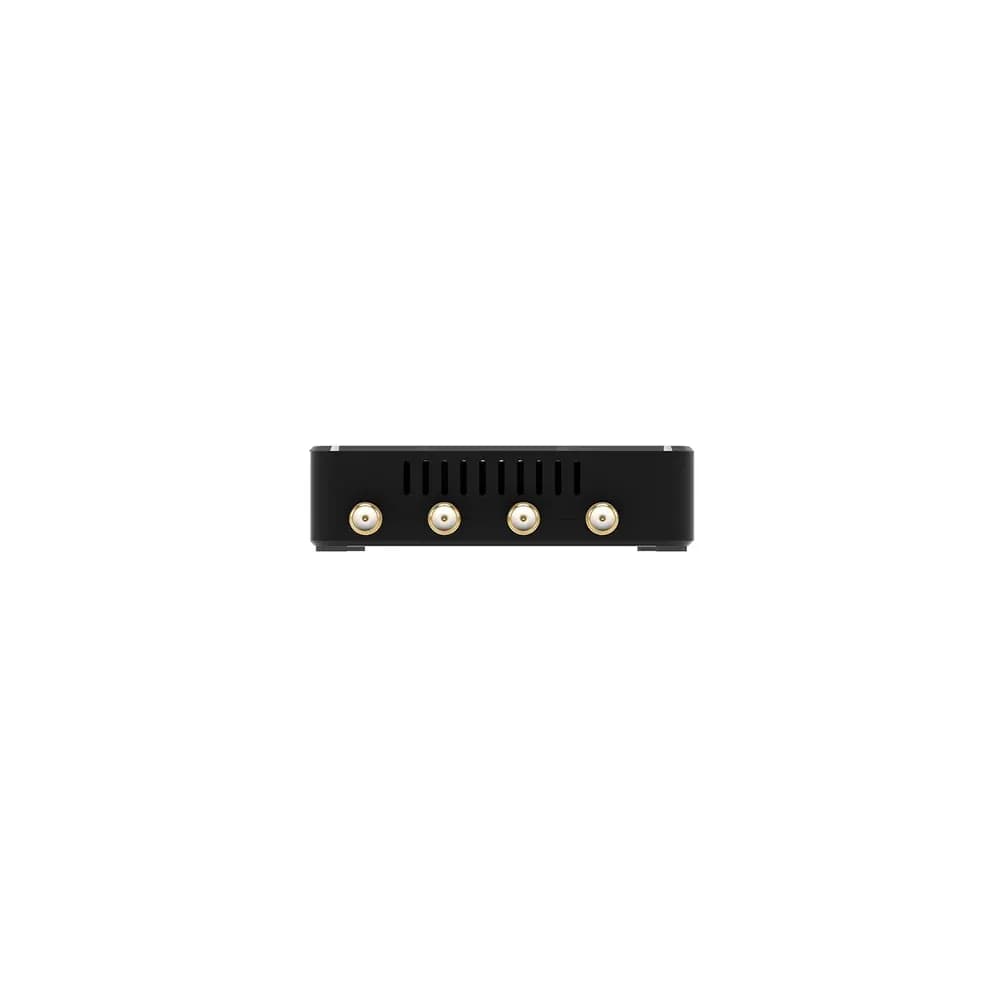

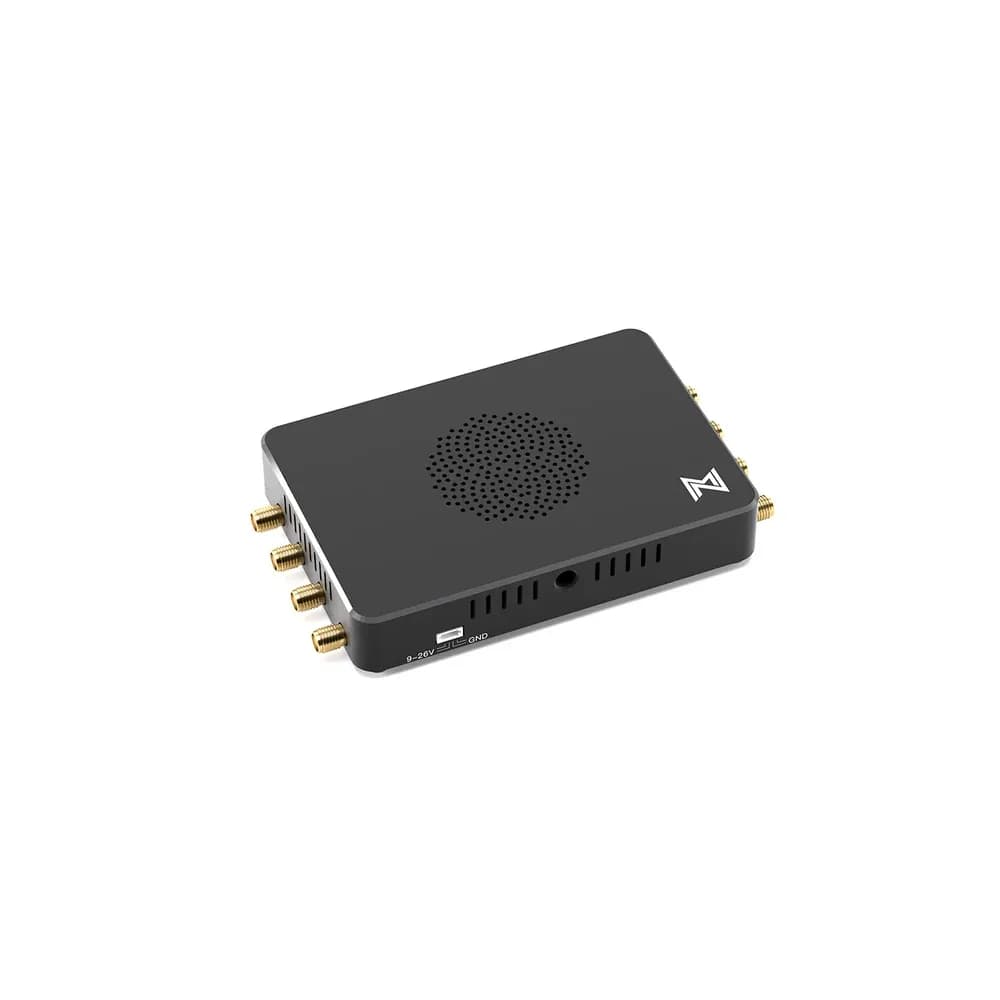

CaddxFPV Walksnail Avatar Repeater

CaddxFPV Walksnail Avatar Repeater is a specialized digital video signal repeater designed for use with FPV drones, fixed-wing aircraft, wings, and robotic systems where high precision, extended signal range, and reliability are essential.

Unlike direct transmission systems, this repeater receives the digital HD video signal from the onboard transmitter (VTX) and re-transmits it to the goggles or monitor, providing superior obstacle penetration, better coverage over complex terrain, and higher link stability. This is especially important for long-range missions and non-line-of-sight (NLOS) flights behind buildings, trees, or hills.

The device is equipped with dual high-sensitivity RF modules, increasing signal durability and resistance to packet loss. Premium internal hardware combined with an efficient cooling enclosure ensures stable and smooth HD video streaming without thermal throttling.

Operating across a wide input voltage range, it maintains low-latency HD video delivery, making it a versatile solution for setting up ground or airborne relay stations.

Thanks to its compact form factor and optimized weight, the repeater easily mounts onto ground masts, tripods, or intermediate relay drones without adding unnecessary setup complexity.

Key Specifications:

• Model: Walksnail Avatar Repeater

• Type: Digital FPV HD Video Repeater

• Operating Frequency: 5.725 – 5.829 GHz

• Latency: Low digital HD latency (~30–40 ms)

• Video Quality: 1080P / 720P HD support

• Input Voltage: 7 – 25.2 V (2S – 6S LiPo)

• Antenna Connectors: RP-SMA / SMA (depending on configuration)

• Cooling: Passive (Aluminum heatsink housing)

• Compatibility: All Walksnail Avatar / CaddxFPV VTXs and goggles

• Interfaces: Power input, antenna ports

• Mounting Type: Ground stations, relay drones, tripods
